This popped up on twitter recently… You can use Emoji characters or Symbols to “rate” things in FCP X. Thing is, you can use them in, like, any text fields. Not sure if it’s a good thing if you share Libraries with other people, but it sure is fun!. Name Keyword Collections, Folders, Events etc. Add notes, even name your clips… Use CTRL-CMD-Spacebar or OPT-CMD-T to select your symbol. 🙂
Here’s a link to the original tweeter.
Almost exactly a year ago I started this here blog with a post entitled It Doesn’t Suck. So… I thought it only fitting to revisit the topic, and see what has changed. In a word, in my little corner of the editing world, nothing. It’s as though it’s the first week FCP X came out. “Nobody uses it”… “If it only had tracks”… “It’s iMovie Pro”. It’s like Groundhog Day.
FCP X currently has dozens of unique, workflow and editing enhancing features, things you just can’t get or do in other NLE’s. It’s not the unfinished App that it was when it came out. And like every NLE, there are things that need work. Guess which aspect everyone here likes to talk about… Having never used FCP X for more than an hour of course. I’m still using it every day cutting spots. You’ve probably seen them. But, ya know… nobody uses it.
Meanwhile, in the world outside the relative handful of companies and editors who cut trailers here, lots of people are using it with great success. In L.A., a fairly large movie was just cut in X. There will be more. A lot of people in town are using it for a variety of projects, documentaries, cable shows, network promos. In the rest of the world, even more people have begun to embrace it. The BBC and other large networks. Ad agencies, Music video’s and television shows. Tons of stuff.
A lot of this may be familiar to FCP X users, but for the “nobody uses it” crowd, here are some links:
Honda’s interactive commercial ‘The Other Side’
Editing a Hollywood feature cut on Final Cut Pro X
The BBC adopts Final Cut Pro X for news gathering
Editing the Tour de France on Final Cut Pro X
Adidas 2014 FIFA World Cup commercial edited in Final Cut Pro X
Sony Xperia commercial cut on Final Cut Pro X
Arcade Fire music video cut in FCPX
I could go on and on, and that’s just links from one website. Somebody is using FCP X. Lot’s of somebodies.
Anyway, the good news is that since everyone now loves Premiere so much (it has tracks!) If I need to use it I can run FCP X at the same time (7 and X don’t play well together). If there’s a gig I need to keep in Pr, I’ll do all my selects and stuff in X due to the fact that it’s just better for that. Then, get it all into Pr, and cut in there. When I need to find a random shot, I just go to X, skim around (Hoverscrub? I don’t think so.), find it in a heartbeat, note the TC, then pop back to Pr and locate it. It’s actually faster to do that then hunting around in the morass of bins and folders and subfolders and tabs and panels and meaningless thumbnails that is Premiere. (and to be fair, most other NLE’s too)
I find SFX the same way. Pop into X, arrow key down the list and look at the waveforms as they instantly appear, find the one I need, and go search for it in Pr. Exponentially faster than playing through 100 whooshes to find the one I need. Like, not even in the same league.
Anyway, this post isn’t about that stuff. It’s about the fact that FCP X still doesn’t suck. It’s gotten really, really good in the year since I wrote my original post. It’s being used on some very high end work regularly, and there’s more every day. And yet, here in the little movie marketing world, crickets mostly. I know people are using X here and there, but nobody talks about it. It’s odd. Ah well, I’m happily using it quite successfully, people have no idea what they’re missing. 😉
I’ll end this “anniversary” post with a little quote I ran across the other day. I think it’s appropriate. Happy Editing!
“Generals are notorious for their tendency to ‘fight the last war’ – by using the strategies and tactics of the past to achieve victory in the present. Indeed, we all do this to some extent. Life’s lessons are hard won, and we like to apply them – even when they don’t apply. Sadly enough, fighting the last war is often a losing proposition. Conditions change. Objectives change. Strategies change. And you must change. If you don’t, you lose.”
– Dr. G. Terry Madonna and Dr. Michael Young
Maybe everyone knows this, I didn’t, mainly because I use connected clips, not secondaries, I don’t use audio dissolves much, and if I cut audio in a secondary the stock centered transition works fine most of the time. But, I discovered a little trick to have a nice A/B crossfade and use a transition to create the handles for you, and give you a “thumb” to move the cut point around.
Cut your audio in a secondary and stick a dissolve on the cut. The length doesn’t matter, it will just be a drag handle when you’re done – Then, just expand the audio and adjust/trim the A/B sides and fade handles as you normally would.
It’s really the same as if you just did it without the dissolve, except… you can now select the transition to adjust position of the expanded edit point using the <> + Shift (if needed) keys. Be aware, when it’s expanded, dragging the transition doesn’t move the cut, but when you collapse the audio, you can click and drag the transition and it moves he A/B handles/fades with it. Useful?
EDIT: The dissolve doesn’t do anything once you adjust the A/B handles, and you can pretty much do the same thing by selecting and dragging the edit point. What it does so is create some handles for you, and let you drag the edit point without changing tools. Saves a couple keystrokes and clicks… 🙂
Just a drive by. Work has been interfering with blogging. I hate when that happens.
Like everyone else using X, I’m just waiting for the next update. And if all Apple does is squash bugs and optimize the snot out of it this time, I’ll be happy. 🙂
So, While I procrastinate the writing of my next, exciting, Magnetic Timeline post, I thought I’d throw up (pun intended) this little nugget. I recently watched a demo of Premiere CC running on a new Mac Pro. There was a little section on real-time interaction with the app, followed by a demo of mixed format 4k real-time performance. Like many of the Mac Pro demos, it was pretty impressive. What got my curiosity up though, was the first section about real time interaction with the app, i.e., editing while playing back. The media used in this section was not specified, but I doubt it was 4k, if anyone knows please chime in. Have a look below. The relevant portion begins about 2 minutes in and is about 2 minutes long. The rest of the video is cool, but irrelevant to my pointless demo…
So… after watching this, I was curious how FCP X (And PrCC) would perform with a similar timeline on the computer I happened to be on at the time. It was not a Mac Pro… So, I grabbed some 1080p H264 clips and did a little test, which runs about 4 minutes:
Then, to be fair, I did the same thing with PrCC. This takes a little longer, about 8 minutes:
So, that’s 15 minutes of your life you’ll never get back. What’s my point? Didn’t really have one, just thought it was an interesting comparison. I own rent Premiere. I use it, and FCP 7 for that matter, when I need to. I much prefer FCP X.
Anyway, I think the takeaway here is that I want a Mac Pro, no matter what I’m gonna run on it. Also, Halloween Parties are fun. 🙂
Addendum: It was pointed out to me that the Pr “Dust and Grain” effect (analog to the “Aged Film” effect I used in X) is not GPU accelerated, so that may be why Pr choked near the end of the “demo”.
Back again with more babbling. To recap… some people find… ah, screw it. I had envisioned this topic as a linear series of posts for folks dipping their toes into X, talking about my editing process… A-B-C-D etc. Turns out my brain doesn’t work that way. Maybe that’s why FCP X appeals to me. 😉 So I guess I’m just gonna write a little bit now and again – in no particular order – about unique things I like when working with, rather than against the FCP X timeline. This little post will be about Storylines.
I, and others, have said that the best way to get acclimated to the Magnetic Timeline is to fill the storyline with gap, and cut everything in as connected clips and disconnect the audio. I did it at first. It works kind of like you’re “used to” working. And it sucks.
Or, you could use connected clips but keep the audio components connected to maintain sync. You get the benefit of audio components/expansion too. But it’s a mess.
Or, don’t fight it. Use the Primary Storyline.
All nice and neat. Use the Position Tool (P) to move clips without rippling. Hold the tilde key while adjusting clips (~) to temporarily disable connections. Press and hold tilde (~) then press SHIFT and release both keys to lock connections off. Press tilde again to re-enable connections. This cursor let’s you know connections are disabled.
When working with Connected Clips, if you want to butt clips together and put transitions on them outside the Primary, X will put them in a Secondary Storyline for you.
Making secondaries is really just like making a new track in other NLE’s. But, you only do it if you need one, which you do if you want to put a transition effect between clips. So… why else would you need one?
Well, maybe you’d like to cut a music bed first, lock it, and edit to that… without having each clip of your music cut move because it’s “connected” to the primary clip above it. Maybe you have a bunch of little clips you want to keep together or easily move as a group. Whatever. Think of storylines as tracks you can move around if you want to. Add gap at the front end and pin it to the head of your timeline and it’ll behave exactly like a track.
What you can also do, that you can’t do in tracks, is expand the audio in storyline clips and do a nice manual crossfade. so it takes the place of 2 (or 4) tracks in other NLE’s. And you can select and manipulate clips in a storylne just like any connected clips in the timeline.
Storylines are also useful if you want to keep a group of clips together for visual organization. Again, just like tracks.
Make new Storylines by selecting a clip and hitting CMD-G. If you forward (SHIFT) delete the clip after this, it’ll leave an empty secondary if you need it.
And while you’re at it, Never disconnect your sync audio. Unless you need to cheat some dialog or something, leave the sync audio components with your video clips. If you know there’s a stem you won’t ever need, disable the component for the master clip. In my case, I hardly ever need the Music from a split source, so I just turn it off in the master clip.
That way, every clip I cut in has the sync Dialog and Effects with it. I can turn either on or off in the timeline clip(s) as needed, but it’s always there, I never need to match back to a clip to “find” the audio I didn’t think I needed. This essentially takes the place of track patching, but you only need to do it when you want to, not every freaking time you cut in a clip.
It’s also trivially easy to do an A/V, Video only, or Audio only edit. Hit Shift 1,2, or 3 before you cut in your clip.
Next up (in some random order) Fun with Audio Components, Managing Clip Connections, Compound Clips, The Timeline Index, and anything else I can think of. Happy cutting!
To recap… some people, coming from other NLE’s, find the FCP X Magnetic Timeline… disorienting. And that’s being kind. No tracks, crazy connection lines everywhere, clips jumping around by themselves, it’s a mess! Madness! But… there’s a method to the madness. And when you work with, not against, FCP X Magnetism, it’s quite nice to work in, warts and all.
Now, if you’re happily using X you probably won’t find this too interesting. Like all my babbling, this post is primarily directed at experienced folks who are trying to give X a shot and are getting stuck. And, as usual, I’ll probably skip important things, and dwell on minutiae. Feel free to ask for clarification in the comments.
Also,there will be a Part 3, on this topic. And 4 etc. It seemed like it would be a simple post when I thought of it. Oh well…
Since I usually have fairly uh, busy sequences, I figured the best way to talk about the Magnetic Timeline would be to talk a little about my workflow on a typical project. I fought against magnetism for quite a while, and it kinda sucked. But over time, I’ve stopped fighting it, and grown to (mostly) really like it. Your mileage may vary… 🙂 This isn’t a tutorial, just my experience, so forgive me if I gloss over some things as I go. And I assume you have at least a passing familiarity with FCP X. So… the first, and arguably most important thing you need to do is:
Roles take on the majority of the organizational functions of tracks in other NLE’s. If you don’t set your Roles properly, your Project will quickly become an unmanageable nightmare. This is especially true for audio, as there is generally much more of it in the timeline. In fact, pretty much everything in this post pertains to audio, though what I’ll talk about is generally true of video as well.
The “built in” Roles in any new Event are Video, Titles, Dialog, Music, and Effects. You can create and assign as many Roles and Sub-Roles as you need. There are a couple custom Roles in the example above. The more detailed your Roles, the more precise your ability to interact with the Timeline will be.
When you import a clip to X, video automatically gets assigned a “video” Role, and any audio with the video gets assigned a “dialog” Role. Imported audio will often get assigned to “dialog”, no matter what it is. Always double check the Role of any clip after you bring it in to an event.
You can assign Roles to clips in the timeline via the Inspector, but it will only change the timeline clip(s). This is quite useful later in an edit for creating sub-roles etc, but do it first in the Browser and it’ll carry into every project in which you use that source.
Take a few seconds to do that as you bring in each clip. You can set Roles on multiple clips if you bring in a folder of music or effects or whatever. You’ll be glad you did. Since I generally get video with multichannel split tracks embedded in it, I need to set Roles for the embedded stems in my master source. Select the master clip in the Browser, open it in a Timeline, and set the proper roles for each channel.
In addition to allowing you to do a nice split audio output with the click of a menu or two, Roles allow you to Mute, Solo, Locate, Select and Manipulate clip(s) from the most overlooked (IMO) part of X, the Timeline Index. More on that in, I dunno… Part 3 or something…
I’ll skip over all the other stuff you normally do before starting a sequence… Selects, Favorites, Keywording etc. There are lots of actual tutorials on that. If done right though, it’s really really easy to find footage you’re looking for as you cut.
First thing I do is create a new Project, and set a usable view. No giant thumbnails, no connections, and the lowest basic clip height. The examples below are obviously an existing sequence.
I’ve also made custom shortcuts to switch between the “working” view, and a super minimized view that I use when I need to see everything in the timeline.
Anyway, back to the empty timeline… I cut a second or so of my main source video in as a connected clip to auto-set the resolution and frame rate. Just my preference, you can manually choose any Project Settings you want when you create your project. Then, I’ll drag out the Gap clip that gets created to some arbitrary length, generally longer than I expect the cut to be. I like to stash unused bits and pieces at the end of the timeline as I go, so this leaves some space to do so.
Next I’ll delete the random clip, cut in my handy slate generator (you can make useful things like this in Motion even if, like me, you have no idea what you’re doing) and start to build the cut.
Cutting in FCP X, surprisingly, is just the same as in any NLE. 😉 Just Don’t Fight The Timeline. Observe, see how it works, and go with it. It’s fun! lol I generally assemble things as connected clips, and “commit” them to the Primary when they’re done-ish. Forget about carefully getting the clips to line up horizontally. Let it go. Just stack and drag and trim ’til they’re good and then dump ’em into the primary for fine-tuning.
You can drag and drop clips if you want, but there are plenty of Keyboard Shortcuts. Many are the same as in FCP “Classic”. In FCP X, the biggies for me when cutting are Q (connect), W (insert), D (overwrite) and E (append). Use these in conjunction with SHIFT-1 (Audio and Video), SHIFT-2 (Video only), and SHIFT-3 (Audio only). Those’ll get what you want into the cut. In the Timeline, the main ones I use are V (disable/enable the clip), OPTION-S (Solo) , CMD OPTION-S (add to Solo group), CNTRL-S (expand audio/video), CMD-4 (open/close Inspector), CMD-5 (open/close FX Browser). There are a zillion more, and you can of course make your own. Spend some time with the command editor, there’s some great stuff in there!
Also, leave your sync audio connected to video. There are reasons to disconnect it, cheating dialog, using a sync effect in multiple places etc. But in general, don’t. I’ll talk about this more in a future post. 🙂
And with that tease, I guess I’ll stop Part 2 here. In later installments I’ll talk about The Timeline Index, Managing Connections in a complex timeline, Secondary Storylines (tracks!), Compound Clips, fun with Audio Components, and whatever other random, disorganized thoughts pop into my head.
Thanks for stopping by!
One of the biggest “issues” people coming from other NLE’s seem to have with FCP X is the how the Timeline works. Magnetism! No Tracks! Storylines?! It’s crazy! As I’ve said before, probably the best way to get acclimated to it is to put a chunk of Gap (slug) into the Primary Storyline and just cut with connected clips. Then it pretty much behaves like what you’re used to. And by “pretty much”, I mean you can grab or lasso clips, drag ’em around etc, and they all stay put relative to the sequence time. You can use transitions as well, FCP X will automatically create secondary storylines as needed when you apply them.
Old Skool 🙂
Despite the lack of tracks, you can SHIFT-Drag (to maintain sync) to vertically arrange clips so that, say for audio, VO is up top near picture, then FX, then Music. However, every clip is going to want to stick to the Primary, so if you have 5 nicely stacked clips in one section, followed by 2 clips in another… they’re not gonna line up horizontally.
Now, my premise here eventually is… who cares? But, if you do, you can either create empty secondary storylines to use as separators, or, as I still do sometimes, record a long clip of silence, connect it to the first frame of the sequence, give it a unique Role, minimize and mute it, and drag it out to length. he latter is preferable as it takes up less space. Also, you can put “sequence markers” on these as well, which is kind of nice. I think eventually this workaround won’t be necessary, but for now it does the trick.
Whether you work with or against Timeline Magnetism, It’s really important to properly assign your Roles from the get go. If you do, You can use the Timeline Index to mute or solo elements, select and modify common properties of multiple clips (or transitions) at once and a boatload of other really useful things.
So, that’s how to kind of cut in X by doing everything you can to counteract the magnetic timeline. In “Part 2, Not fighting The Magnetic Timeline”, I’ll tell you why using the preceding methods sucks, and how embracing Magnetism makes editing fun! And I’m not talking about sequences like you see in tutorials with nice long shots and a 2 or 3 layers of audio which make dealing with connections fairly straightforward. The project below has around 36 tracks, or 18 stereo pairs. There are a lot of connections, but if you use X like X, it’s not a big deal to manage. If you try to use X like 7 or Pr or MC… It’ll get ugly pretty quickly, which is I think what tends to happen to some folks.
Given my posting schedule of late, it may take a while for Part 2 to appear, but I’ll do my best. Happy Editing!
Final Cut Pro 10.1 is here! Along with updates to Motion and Compressor! All are free updates. There’s a lot of info flooding out right now, and I’ll leave it to others to talk about all the cool new features and goodies in these updates. This, my little contribution to the deluge of information, is about updating your existing FCP 10.0.x work to version 10.1. There have been some major changes, good changes, to how FCP X organizes stuff, and I hope my post will help to explain it a little bit. And by ‘post’, I mean ‘novel’… It’s way longer than I thought it would be. But it’s really entertaining! With pictures and stuff!
For the record, I’m not “certified” as anything, except maybe insane, as I started madly moving all my work into FCP 10.1 the second it appeared. I’ve cheerfully ignored the “don’t upgrade in mid-project” mantra, and updated all of my wildly varied Projects and Events. I am very tired. However, you’ll be happy to know that updating your work is really quite easy.
Apple has a very good white paper on this process, and there are detailed instructions available via the Final Cut Pro 10.1 “Help” menu. What follows comes from my experiences when updating, and it’ll hopefully make it a little easier for you. I do suggest reading the official Apple info, just in case I’ve missed anything. Also, as you’ve no doubt heard, you will need to update to OS X Mavericks to run 10.1.
For lack of a better term, I’ll be using the word “job” throughout this post to refer to associated sets of 10.0.x Events and Projects. Remember, a 10.0.x Project is always associated with an Event. They are connected. And since they’re connected, It’s easier to refer to all the Projects connected to an Event or Events, combined with the Event(s), as a “job”. Fewer words. 😉
FCP 10.1 does away with this arcane method of organization and puts everything in Libraries. A 10.1 Library contains multiple Events and Projects in the same location. No more Project Library. To work with existing 10.0.x material, you need to convert (update) your associated Project(s) and Event(s), aka jobs, to Libraries.
I’m pretty careful about keeping track of these associations, and I updated each of my nicely separate 10.0.x “jobs” one at a time to become individual 10.1 Libraries. I’ll explain how I updated below. But maybe you only have a few “jobs”. Or perhaps you’re not as OCD as me. You might not remember that at some point you created a Project associated with a particular Event, but you did. In this case, the best strategy, and the strategy Apple seems to favor, may be to update all your jobs at once.
When it updates your jobs, FCP 10.1 will create a separate Library for each connected drive containing online (not hidden) FCP 10.0.x Projects and Events. So, by updating all your jobs/drives at once, you don’t have to figure out the associations beforehand. And there’s no need to hunt through Events for your projects when you’re done.
When a Library is created by updating – even if you update multiple Events and Projects at once- the original Events will all appear in the new 10.1 Library. And your Projects – no matter which Event in the job they were associated with – will be put into one new Event (named “Updated Projects”) in this Library. What happens – more or less – is FCP 10.1 puts the contents of your old Project Library into this Event in the new 10.1 Library.
Of course, everyone works differently. As I said, I have a lot of pretty well organized jobs on my disks. So I updated separate jobs on each
disk, rather than everything on the disk. For more advanced users this may be an option.
In FCP 10.0.x I use the now free Event Manager X (EMX) to create job sets that I can open and close separately. When I updated these jobs, I used EMX to do them one at a time. To be clear, it is not necessary to use EMX when updating. It made sense for me, because I already use it and it worked well for what I wanted to do.
Each of my FCP 10.0.x jobs consists of Event(s), and associated Project Library folders (containing multiple Projects) with the same name as the Event(s) the Projects are associated with. The folders were all created in the FCP X Project Library, not in the Finder. All Projects associated with the Event(s) go in those named folders. I then use EMX to hide or open only the sets containing associated Projects and Events. My “jobs”.

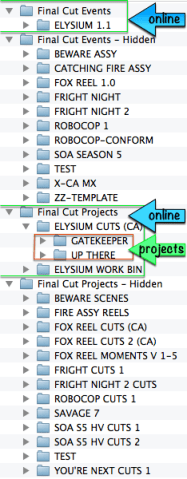

If that seems confusing, the picture on the left shows my Project and Event folders as they appear in the Finder. Only one “job” (ELYSIUM) is online, all other jobs are hidden (offline). My “jobs” can contain multiple Events and folders of Projects, but they’re all associated.
I’ll touch on this stuff again below. In fact, there will be a lot of redundancy as I prattle on here. Sorry.
By the way, all those job names are totally fake. I only cut home movies and YouTube cat videos in FCP X.
Again… if you’re less of a geek than I am, don’t have many “jobs”, or don’t really organize your stuff in any meaningful way, it’s probably best, and likely easier, to update everything at once. Having all your work online at the same time – and all of your drives connected – will result in fewer possible issues with unlinked media. FCP 10.1 will create one Library for each connected disk. If you use Disk Images to keep your jobs separate in 10.0.x, you’ll really like the update process.
For example, if you have Project and Event folders on four connected drives (i.e. Macintosh HD, two Disk Images, and a Thunderbolt drive) You’ll end up with four corresponding Libraries. After you update you can then sort things into additional new Libraries you create, and/or to new Events or Keyword Collections within Libraries. I’ll get back to that below as well.
If you’ve gotten this far without falling asleep, I’d suggest reading this whole post first before you do anything. It’ll be fun! Hopefully the process will then make sense, and you can decide which updating method, individually or all at once, you’re most comfortable with. Updating your work to 10.1 is easy, But I think doing a little organization first in 10.0.x. is a good thing. You don’t have to, but it helped me.
Once you’re all organized, but before you install FCP 10.1, make backup copies of everything. This includes your old 10.0.x app itself (.zip it by Control Clicking it and choosing Compress…), all original Projects and Events, and even your Motion Templates folder just to be safe. If you back up to an attached drive, put all these copies inside a folder on that drive so FCP 10.1 won’t see them when you begin updating. You want your backups to remain unchanged.
You can also remove all your preferences using Digital Rebellion’s Preference Manager if you want. For what it’s worth, all I did was back everything up, install the new apps and update my jobs. You should probably be more cautious than I am, but for me updating was a very straightforward, trouble-free process.
For those of you who’ve been using Compound Clips as faux “projects”. . . In my opinion (which you are free to ignore) you might want to convert them to actual projects before you update your jobs to 10.1 Libraries. To do so, in FCP 10.0.x, take any sequences you’ve cut in CC’s that you plan on bringing into 10.1, edit them into new, empty projects, and break them apart.
Any Compound Clips that are just used as Compound Clips (meaning those that are not projects that you’ve cut in CC’s to avoid the Project library) will be fine. And honestly, your “project” CC’s will be fine too. Like I said, this is just my opinion.
If you’re cutting spots, shows, trailers… whatever, in CC’s instead of projects, I think you will be happier if you convert them to actual projects. Among other reasons, the great new ’snapshot’ feature only works for Projects. Also, as noted above, 10.1 puts updated projects in one place, CC’s will still be in their original Event(s) in the Library after updating. Not a big deal, but… inconvenient.
To be perfectly clear, this isn’t required at all, it’s just my preference. If you don’t do it first, you can always do it anytime after you update your 10.0.x “jobs” to Libraries. Or not at all. Nothing will get screwed up if you don’t.
If you’ve trashed your old preferences during your backups and preparation, make sure everything is set correctly after you install 10.1. Particularly the FCP X “Media Storage” preference (Copy to Library or Leave in Place). Again, not required, just a suggestion. I use shared media, so I leave files in place. The steps below (there really are steps below, honest!) will work whether you have your original media stored in your Events, or externally linked.
Just to redundantly reiterate what will be going on. . . when you choose the “Update Projects and Events” command and select an option, FCP 10.1 will make a new Library from each available set of Event/Project folders it sees on every connected, mounted drive. 1 drive = 1 Library, 2 drives = 2 Libraries, etc.
pick an option…
this will happen…
You can also navigate to specific Folders, disks or SAN locations which contain 10.0.x Event and Project folders and update those “jobs” individually. During the update, 10.1 will move media to the new Library, but it does not duplicate or delete any media. So, even if the update process takes a while, don’t worry about that.
If you have Original Media in your 10.0.x Event it will be moved (not duplicated) to the new Library. If you use linked (shared) media, it will stay in place wherever it is, only the links will be moved to the new Library. Painless.
Be aware that for each “job” or set you update, it is important that you have all the Events associated with your Projects in each “job” or set online. If a Project references Events on other volumes, just be sure they’re all online when you update. The same holds true if you’re updating everything at once, with EMX, manually locating, or by mounting disks or SAN locations.
If you do have Projects – or Compound or Multicam Clips in your Projects – that don’t have the associated Events they’re linked to online when you update the set… you’re going to need to spend some time re-linking stuff. It’s not a big deal but it is kind of annoying. I learned this the hard way.
If, for some reason, you don’t know how to relink, simply choose “Relink Files…” from the File Menu, and let X find, (or point X to) the offline items it lists. I think it’s better to take your time before you start so you don’t have to do this though.
To tell the truth, everything I’ve written so far is basically just to prevent you from updating and ending up with a bunch of offline media in your shiny new Libraries. That, at least in my experience, is the worst thing that will happen. The update process is pretty much idiot-proof. I was actively trying to screw it up at times (I made good backups first!) and all my work survived.
The next section talks a little about preparing your jobs for updating with the help of EMX. If you don’t plan on using EMX – if you have any qualms at all about EMX – just skip to the actual steps that follow.
Using Event Manager X When Updating Jobs
If you don’t have it, get the latest version of EMX. You can create job sets, and then load and update each individual EMX set to create individual 10.1 Libraries. Advanced users can create, load, and update individual job sets manually, but it can become complicated. EMX simplifies this process.
If you’re at all confused by EMX or the individual job update method, I recommend updating all your work at once. As you’ll see later, it’s very easy to reorganize it after updating.
I made all my EMX Sets before I installed FCP 10.1. Then, after installing 10.1, I used EMX to load individual job Sets for updating. You can make Sets after you install 10.1. Just don’t choose “Update Projects and Events…” from the FCP “File” Menu until you’re done preparing your EMX job Sets, as each time you update a set, the original Project and Event folders will no longer be available to EMX.
Perform the following steps with FCP X closed
— Open EMX. Un-check the “Re-open Final Cut Pro X” preference in the main window of EMX. This prevents FCP X from opening automatically when you perform actions. Nothing bad will happen if FCP opens, it’s just unnecesary for what we’re doing…
— In EMX, create sets of your 10.0.x Events and their associated Projects. Click the pic below for a bigger version. If in doubt, detailed instructions are in the EMX help.
1-select ‘All Off’ in the “Set” menu. (you must do this before creating each set!)
2-check the associated Event(s) and Project(s) for your first job set. Click the + button
3-Name your job set and click ‘OK’.Repeat Steps 1-3 for each Set you’d like to create.
— When you’re done, and have installed FCP 10.1, choose a set from the “Sets” Menu. Make sure everything you expect to be included is selected, and click the “Move Events and Projects” button. That will load your first set. Then, to update it to a Library proceed to step 1 below…
Note: If FCP X is open when you click the “Move…” button, X will quit. Don’t worry about it.
All backed up? Have you read all the documentation? EMX users have your sets all ready? Good! Install your new apps and let’s update stuff!
1- Open FCP X. Don’t worry, 10.1 will not update anything until you tell it to. The first time it opens, it will create a new default Library. It might ask where you want to save it, I honestly don’t remember. The new Library will contain an empty, date stamped Event. FCP 10.1 requires that at least one Event exist in a Library, you can’t have an “empty” Library. Leave that Library alone for now, you can delete it or use it later.

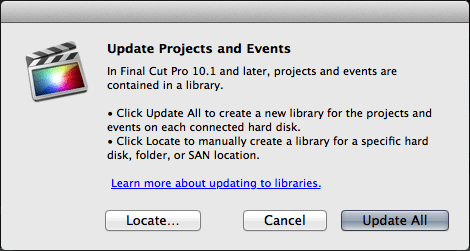

2- In the FCP X “File” menu, click the “Update Projects and Events…” command. A dialog box will appear. If you have an EMX set loaded – or have jobs in your local Project and Event folders and/or on connected disks that you’d like to update all at once – select “Update All”. Alternately, you can “Locate” (point FCP X to) specific Disks, Folders or SAN Locations to update them individually. The dialog explains it well, and the “Learn more…” link provides much greater detail if you need it.
Whatever option you pick, FCP X will then create a new Library for each connected disk or specified location. Each Library will be named “(location name)’s Projects and Events”. In this Library will be all the Events that were present in each 10.0.x “job” set (whatever was online or you had Located), as well as an “Updated Projects” Event. If you had your Projects sorted into sub folders in the old Project Library, they’ll still be nicely sorted in Keyword Collections in the new 10.1 Library.
When it finishes updating, you will be prompted to save or discard the originals. I suggest saving them ’til you’re comfortable with the update process. If saved, 10.1 moves your original Event and Project folders into a new folder it creates (in the same location as the originals) called “(location name)’s Old Final Cut Projects and Events” should you need to access them for whatever reason. If not saved they will be moved to the trash.
Make sure everything came over as expected. You can then rename the new Library and any Events and/or Keyword Collections it contains if you’d like.
If you updated everything at once, you’re done. E Z. 🙂
If you have more individual jobs you’d like to update, proceed to step 3 (using EMX) or 3A (Manual Updates).
3- If you’re using the Event Manager method, quit FCP X (Not really necessary, but EMX does this automatically when you choose Move Events and Projects as it’s designed for FCP 10.0). Then, Select and Move the next set of Events and Projects, re-open FCP X, choose “Update All”, and repeat ’til done.
3A- If you’re not using EMX, and you’re updating individual “jobs” manually, you need not quit FCP X for each job set you update. Just create additional new “job” sets and ‘Locate’ them (see below), or mount additional disks or SAN locations, and choose “Update All” for each “job” you bring online.
A little tip for those who manually hide and load jobs. If you have folders or “offline” locations containing jobs you’d like to update, just stick your job folder pairs (Projects and Events) in properly named parent folders, then “Locate” each in turn to create individual Libraries. This trick also works if you missed a job while updating, or need to update an old, archived 10.0.x job or something.
That was easy wasn’t it? 🙂 The great thing about Libraries in 10.1, is that by design, they always contain every bit of media needed for the projects within them. If you cut a clip from an Event in one Library into a Project in another, it copies the clip, (or the link to the clip if you leave media in place) into that Library. No more dependencies. Very nice.
Cliff Notes:
**If you want to update everything at once, make sure it’s all online using your preferred method and just perform steps 1 and 2 above**
**If you’re updating individual jobs, and use Disk images/San Locations, mount each of them (or as many as you’d like to update at once) and perform Steps 1, 2 and 3A.****If you’re updating individual jobs, and have 10.0.x Event/Project folder sets stored within folders anywhere, even if they’re “offline”, just navigate to (Locate) each job folder and perform Steps 1, 2 and 3A.**
So… You’ll end up with one or more nice, organized Libraries full of Events and Projects. Now what? Other than Projects and Events now being in the same place, the way you organize things in 10.1 is similar to previous versions.
Events function more or less the same as before. You can make as many Events as you’d like in a Library. You can move clips/media, or copy/duplicate collections and other metadata between different Events within a Library.
Projects in 10.1 are also pretty much the same. Personally, I keep all Projects in their own Event in each Library, and organize them in there, but you can put them anywhere in the Library you want. The biggest new Project-related feature is Snapshots. Simply stated, a Snapshot creates a date-stamped duplicate of a selected Project.
But, it’s better than a duplicate because… If you have Compound Clips or Multicam Clips in the Project, it makes them self contained. They no longer refer to the original Compound or Multicam clip parent clip – they now only exist in the Snapshot. You can of course still edit them, break ’em apart, whatever… but doing so will have no effect on any other Compound or Multicam Clips. It’s a really nice feature.
Remember though, if you choose to duplicate a Project rather than make a Snapshot, any Compound or Multicam Clips it contains still refer back to a parent as in previous versions of FCP X.
Either way, duplicated normally or as Snapshots, Projects in a Library now share render files. In 10.1 you can also delete Render Files from multiple selected Projects at once, as well as from multiple selected Events in a Library. Nice.
Libraries essentially act like individual mounted Disks or SAN Locations did in previous versions of FCP X. You can copy and move things between separate Libraries. Anything you drag and drop from one Library to another gets copied to the target. All the necessary media (original clips or links to shared media depending on your prefs), Keywords, Keyword Collections, etc will come with it. You can Move Events from one Library to another as well, with the Edit Menu “Move…” command. Remember though, you have to have at least one Event in a Library, so you can’t Move all the Events from one Library to another.
You can have multiple Libraries open at once, and open and close them with a normal “Open…” command. Finally! Also, if you hold the “Option” key down while launching FCP 10.1 an “Open Library” chooser will appear. In addition, Clicking and holding the FCP X dock icon will let you select and open recent Libraries.
If you want to easily share Project(s) or Event(s), then moving or copying material between multiple Libraries is straightforward.
With a “source” Library open, create a New Library. New Libraries will, by default, contain one empty date stamped Event. Rename it and/or add new Events etc as you see fit.

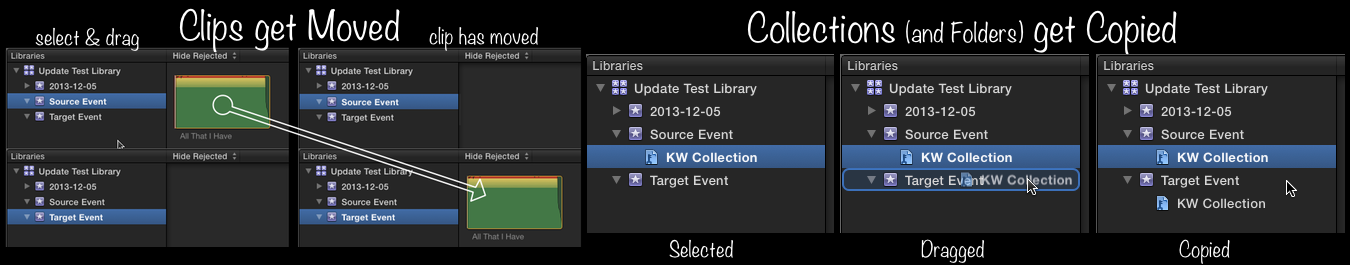

To COPY items and leave the source Library unchanged, select whatever you’d like, and use the “Copy (item) to Library…” Edit Menu command. (“item” changes depending on what you’ve selected). Or just drag whatever you’d like, individual Projects, Events etc. from the source Library into the new Library. Events can be dropped onto the target Library to copy them. Other items, individual clips, projects etc, must be dragged to an Event in the target Library – don’t try to drag them directly to a Keyword Collection.
Selected items will be copied to the target Library. All your Keywords and everything else needed will come with them. Linked media will stay where it is, Original Media contained in the source Library will be duplicated into the Target Library. The source Library will not be modified. Everything will remain in place unless you choose to delete it from within the source Library.
To MOVE items out of the source Library to another Library, select whatever you’d like, and use the “Move (item) to Library…” Edit Menu command. (again, “item” changes depending on what you’ve selected) You can’t move items via drag and drop, you must use the Edit Menu command.
Selected items will be moved to the target Library. All your Keywords and everything else needed will come with it. Linked media will stay where it is, Original Media contained in the source Library will be moved into the Target Library. The source Library will be modified. Everything you moved from the source will… uh… be moved.
SAN Locations, Disk Images etc will work as before if you want to store Libraries on them, but you no longer need to use them to open and close jobs. No more mounting / un-mounting nonsense. You just open and close Libraries in FCP 10.1 like any other file.
One limitation… you can’t duplicate an entire Library via the edit menu or a contextual menu. If you need to do this, you’ll need to create a New Library, select everything within the Library you want to duplicate, and copy it all into the New Library. Then you can save the new Library to wherever you want. I guess you could just make a duplicate in the Finder, but I don’t like doing that. I try to do all copying, moving etc from within FCP X. It’s up to you…
Hopefully this basic, slightly rambling overview will help you get moved to 10.1. The FCP X team has done a great job of making it a really painless transition. And with Libraries, collaboration is now really simple.
The 10.1 user interface is not wildly different, but the app is a lot better. It has some important fixes, updates and cool new features. One of my favorites is the new keyframe behavior. Try it! Some menus are new, revised and/or rearranged… so poke around in the app and check out the differences as some things have moved. A million articles will soon appear to detail all the goodies.
There are also a ton of “under the hood” changes: FxPlug 3, vastly improved XML 1.3, a Custom Share API… these open up some great new possibilities for interacting with existing, and yet to be invented Applications. I’m sure Alex Gollner will detail them all. I’m really liking FCP 10.1 so far, I’m sure you will too. I can’t imagine going back to the creaky, old, 10.0 version. lol

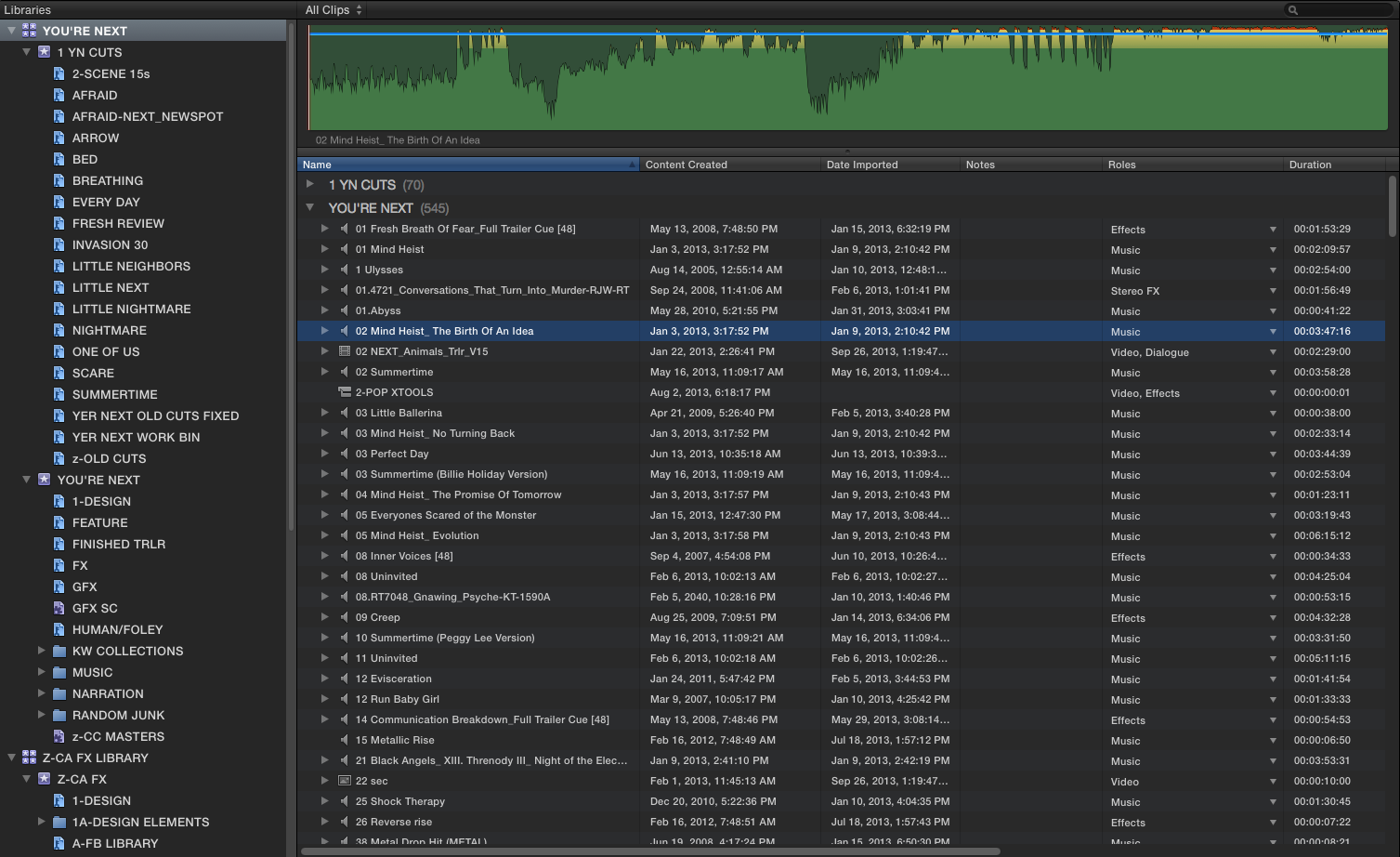

Just for laughs, here’s a couple shots of my screen after updating. All my work is still there. 🙂 Have fun!
